| 種類 | 其它 |
|---|---|
| 屏幕尺寸 | 16.4 |
| 品牌 | 深圳捷鴻超聲 |
| 型號 | 定制 |

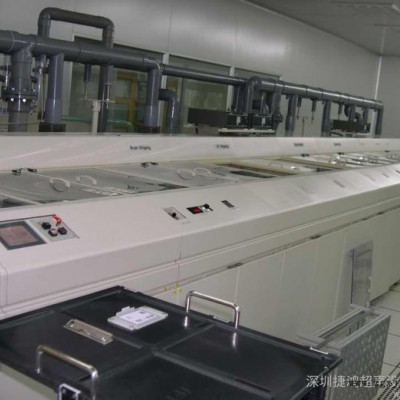

工藝流程：
入料—切液—洗劑刷洗—洗劑超聲波清洗—切液—純水刷洗—純水超聲波清洗—切液—純水噴淋—切液—IR烘干—UV光清洗—高效風冷(除靜電)—出料
Process:
Input feed - liquid drying - Lotion rolling brush washing - Lotion ultrasonic cleaning - liquid dr** rolling brush washing - DI ultrasonic cleaning - liquid dr** spray washing - liquid drying - IR drying - UV light cleaning - Cooling（Eliminating static） - Output feed
產品描述：
◆PLC程序自動控制與寬屏觸摸屏人機界面。
◆整機采用PVC及不銹鋼材料制作，潔凈美觀。
◆采用螺旋齒輪傳動，主傳動與輸送腔室隔離。
◆噴淋、刷洗、超聲交替結合，有效去除污染物，滾刷高度及轉速可調。
◆配備自動加藥裝置，密封蓋板及雙水封結構，防止藥氣外泄。
Product description：
◆PLC program control and widescreen touch interface.
◆The machine made PVC and stainless steel, clean and good looking.
◆Using spiral gearing driving and separate the main drive and conveyor chamber.
◆Spraying, brushing and ultrasonic to effective removal of pollutants, the rolling brush height and speed adjustable
◆Equipped with automatic dosing device, sealed cover and double water seal structure to prevent drug leaking.
技術參數：（Technical parameters）
設備尺寸（Equipment dimension）:12000*2000*1800mm(L*W*H)
基板尺寸（Glass dimension）:14"x16"
玻璃厚度（Glass thickness）:0.4-1.1mm
傳送速度（Conveying speed）:0.4-4m/min
建議生產速度（Suggest conveying speed）:2-2.5 m/min
輸送面高度（Conveying height）:950mm
