| 電源 | 3∮ac380v |
|---|---|
| 最大擠出機 | 25mm |
| 長徑比 | 1：33 |
| 螺桿轉速 | 0-95rpm |
| 加熱方式 | 電加熱 |
| 模頭 | 衣架型 |
| 模唇寬度 | 300mm或指定 |
| 切邊裝置 | 切邊刀 |
| 物流 | 陸運 |
| 包裝 | 木箱 |
| 產地 | 東莞 |
| 螺桿直徑 | 25 |
| 生產能力 | 1-10 |
| 售后服務 | 一年保修 |
| 外形尺寸 | 2350x800x1650 |
| 種類 | 片材擠出機 |
| 品牌 | 錫華 |
| 型號 | XH-432-1 |
| 螺桿數 | 單螺桿 |
| 可生產管材類型 | 流延膜 |
| 擠出直徑 | 25mm |
XH-432 實驗室流延薄膜機
XH-432 Laboratory cast film machine
簡介：薄膜成型設備是針對高分子材料（塑料、橡膠）、塑料原材料、塑料加工等行業研究。可完成擠出、吹膜、壓片、流延、拉伸、復合等成型加工實驗。工藝齊全、功能擴展強大、操作簡單方便，是橡塑行業的實驗設備
Introduction: Film forming equipment is for the research of polymer materials (plastic、rubber), plastic raw materials, plastic processing and other industries. It can complete the extrusion, blown film, sheeting, casting, stretching, composite molding processing experiments together. The process is complete, the function is extended and powerful, the operation is simple and convenient. It is the best experimental equipment for the rubber and plastics industry.
工作原理：物料從料斗里放入經過擠出裝置的塑化和擠出變?yōu)榱餮訝顟B(tài)，再從主機經模頭出來，通過兩輥壓延機進行壓延。
Working principle: The material is put into the hopper, through plasticizing and extruding of the extruding device the material become cast state, and goes out through the die head, then rolled by the two-roll calender.
技術參數 (Technical Parameters)：
| 型 號 Model No. | XH-432-1 | XH-432-3 |
| 設備 Name | 單螺桿擠出機 Single screw extruder | 三層單螺桿擠出機 Three-layer single screw extruder |
| 螺桿直徑 Screw diameter | ￠25或指定 ￠25 or customized | ￠25×3臺 或指定 ￠25 or customized (3pcs) |
| 長徑比 L/D | 1:33或指定 1:33 or customized | 1:33或指定 1:33 or customized |
| 螺桿轉速 Screw speed | 0-95rpm變頻調速0-95rpm Frequency | 0-95rpm變頻調速 0-95rpm Frequency |
| 體積（W×D×H） Volume | 2350×800×1650mm | 2500×900×1750 |
| 重量 Weight | 約500 about 500kgs | 約900 about 900kgs |
| 電 源 Power Supply | 3∮，AC380V | 3∮，AC380V |
| 模頭 Die | 衣架型 Hanger type | 衣架型 Hanger type |
| 模唇寬度 Die lip width | 300mm或指定 300mm or customized | 300mm或指定 300mm or customized |
| 切邊裝置 Edge cutting device | 切邊刀 Edge knife | 雙切邊，雙收卷 Double trimming,double winding |

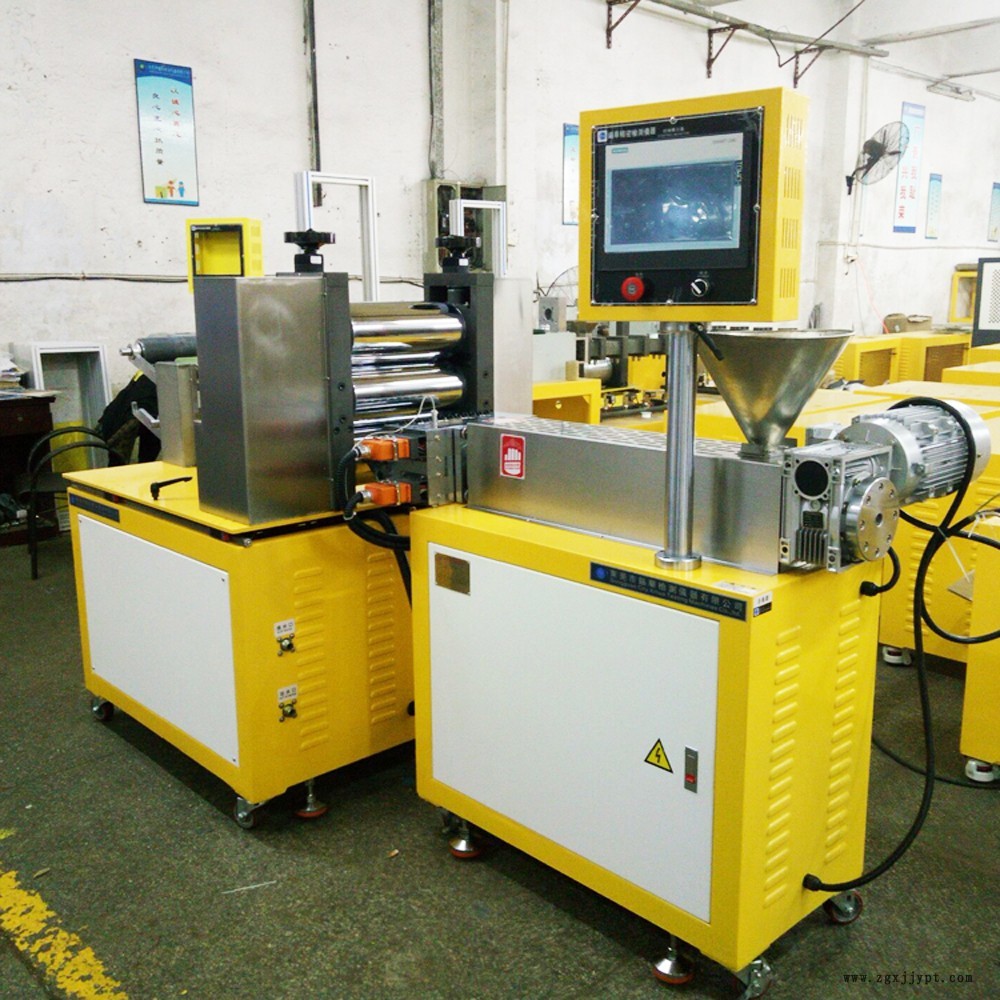

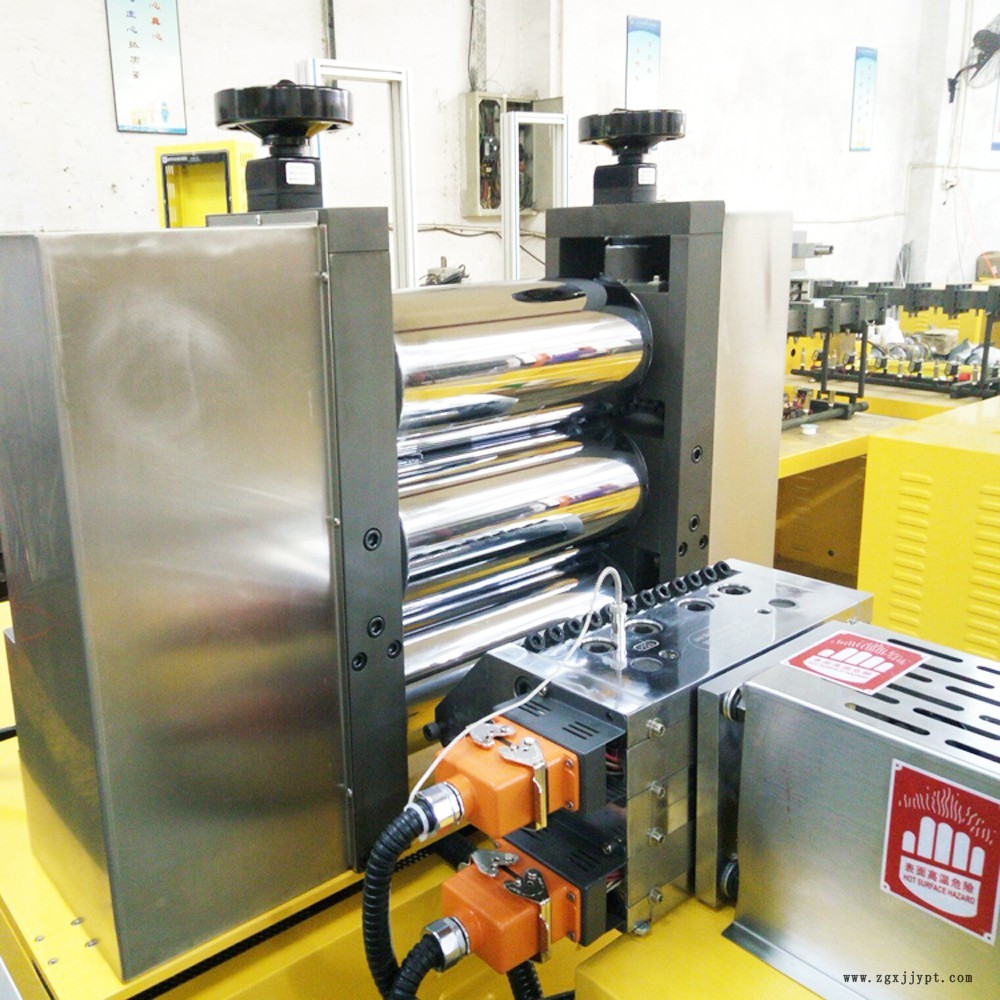

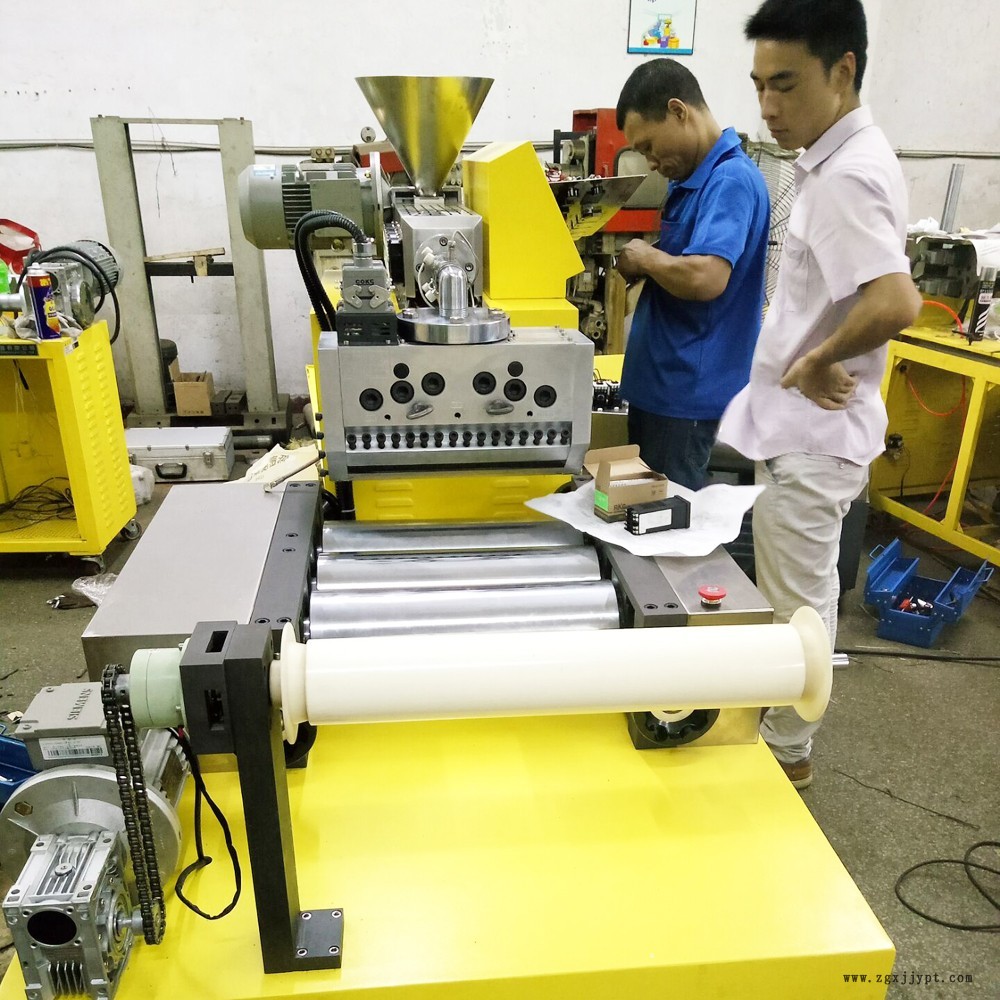

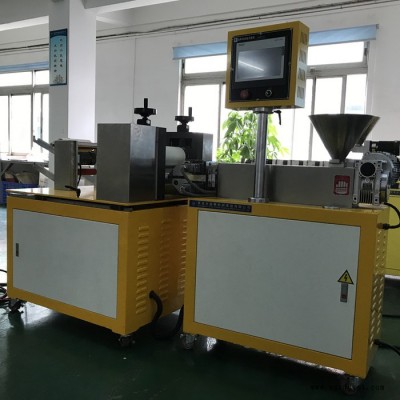

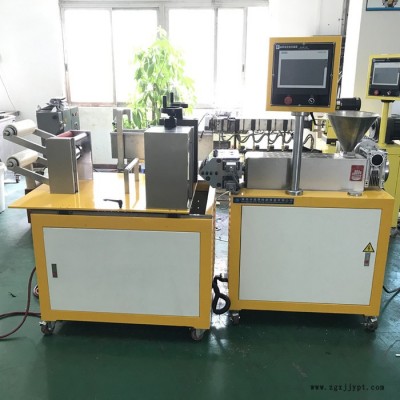

生產車間實拍大圖：
